PTH500 Manual Lift Table

Lift Table

PTH500 Manual Lift Table


  • CAPACITY

    500kg

  • LIFTING HEIGHT

    2000mm

  • PORT OF LOADING

    Ningbo, China

  • CERTIFICATION

    CE certificate


SPECIAL FEATURES

  • ■ Foot pump hydraulically raises platform
  • ■ Double Pump, heavy duty design
  • ■ Overload valve protects pump and operator

● Large table top of 905 x 500mm.

 2 Metre maximum Lift Height

 4 Double Polyutherane (PU) wheels, 125mm diameter, 2 of which are locking

 Heavy duty steel construction.

 500 kg capacity with three stage scissor lift.

 Raised by an foot operated hydraulic lift and lowered with a foot operated release valve.

 Minimum lowered height of 530mm

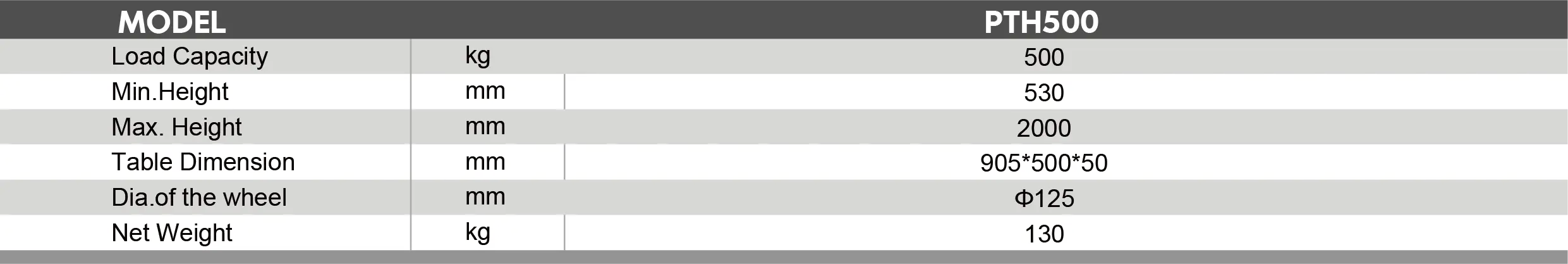

 For further details and dimensions view the online PDF spec sheet.

 CE certified

 Supplied with operating manual

PTS350B PTH500zcu
