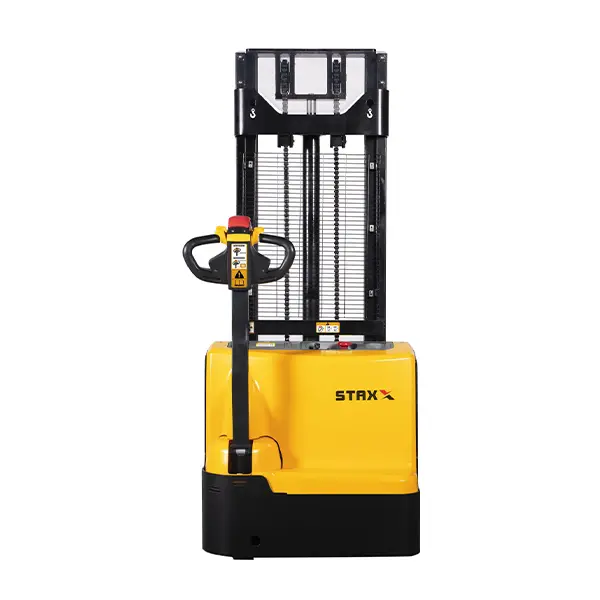

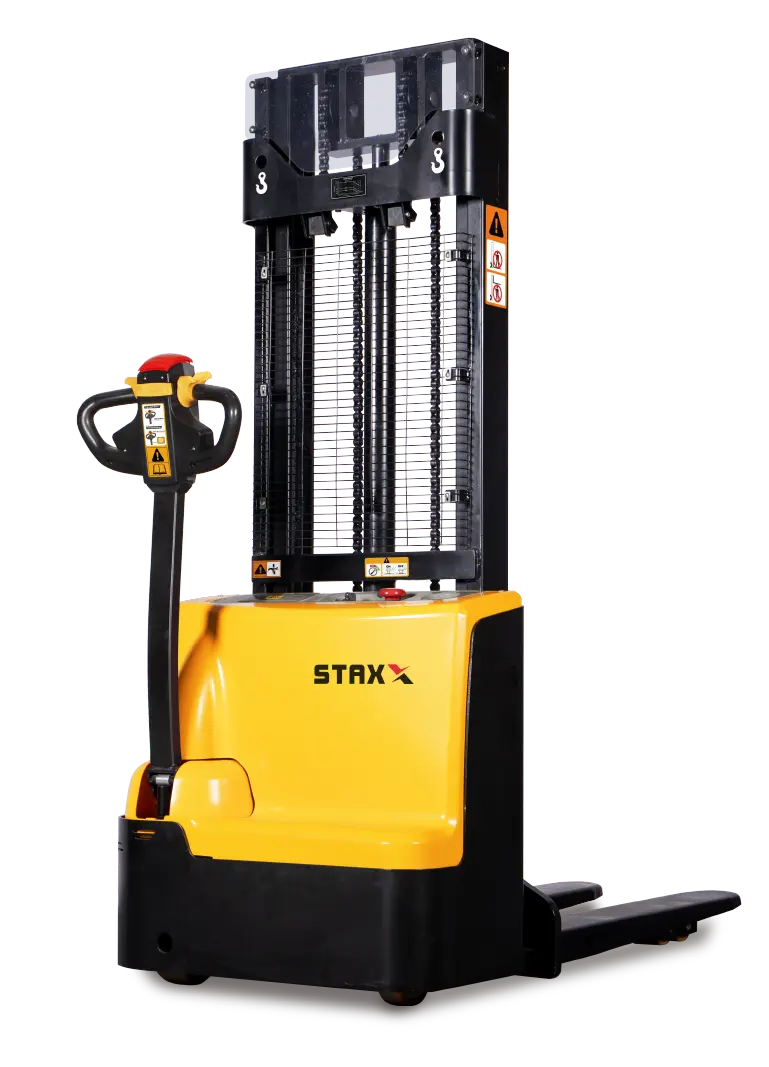

WS15H-B Fork Over Stacker
Intelligent & Efficient

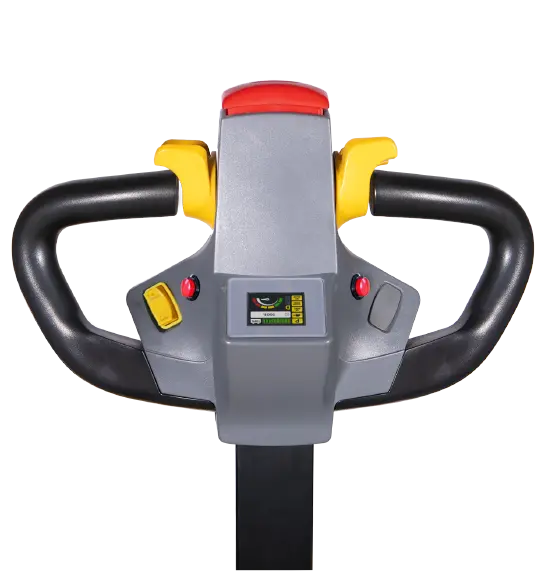

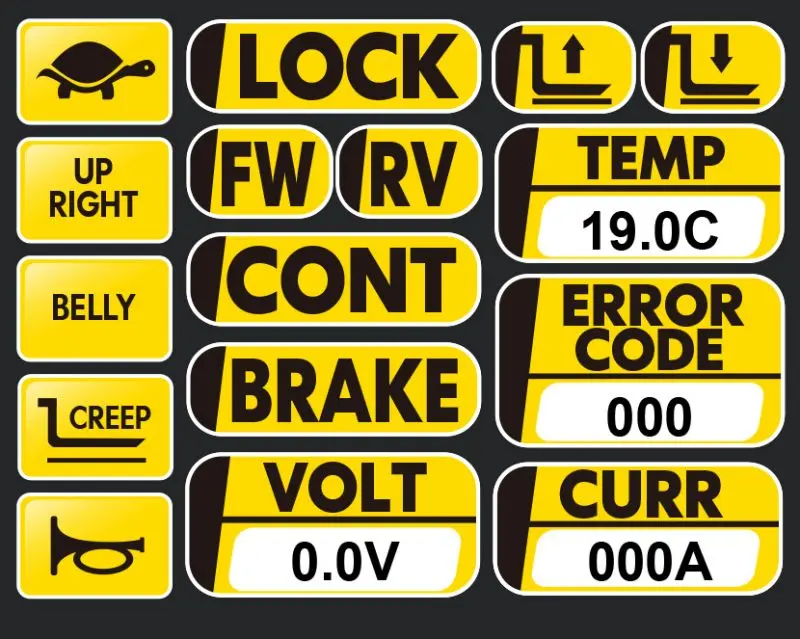

Multifunctional intelligent tiller handle
Recharging Alert
Fault code display
Battery power
Lifting & Lowering
Forward and backward control knob
Emergency reverse switch
Horn
Easy Maintenance

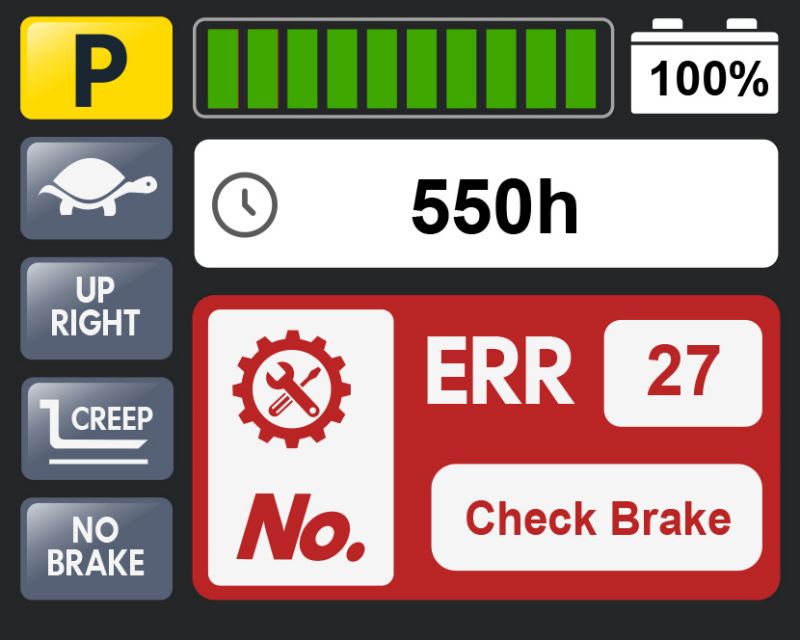

Operation status & fault diagnosis are integrated onto the tiller handle display for easy troubleshooting.
Turtle Speed
Enable operator to choose different speed modes based on their experience and the specific work environment.

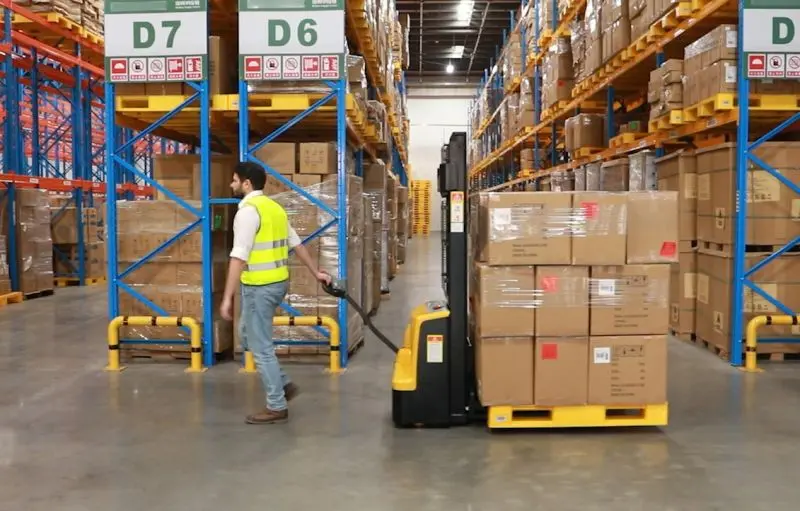

Up-Right Drive
Easily maneuvered with the handle in the vertical position by pressing the turtle-speed button.
Engineering Mode
When truck is down, release the brake to move the unit manually.
-
Rugged & Durable
Due to a high-strength frame and mast design and solid materials used, the deformation of the frame, mast, and forks is small. -
longer service lifeMast: Standard C+H channel steelFrame: Steel plate thickness of 5mmFrame bottom plate: 16mm flat iron on both sides of fork
-
High-strength forksThe forks are formed in one piece with a thickness of 8mm steel. High strength and small deformation even under heavy loads.
-
Double-chain designCompared with single-chain design, it has higher strength, safer and more stable.

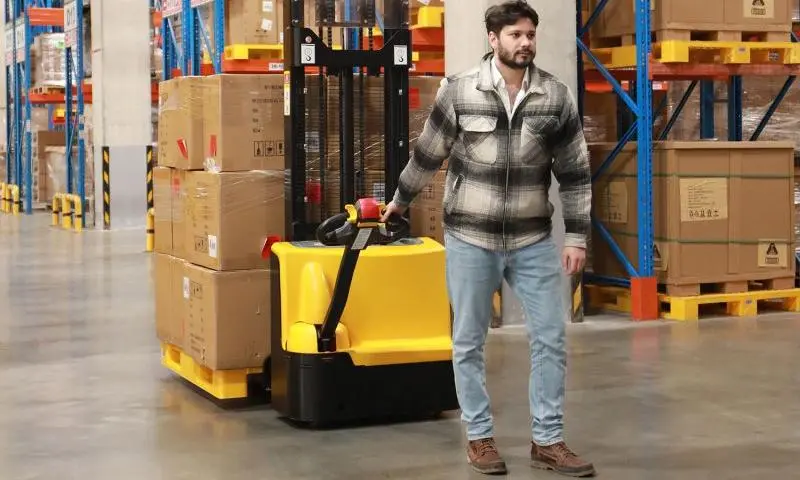

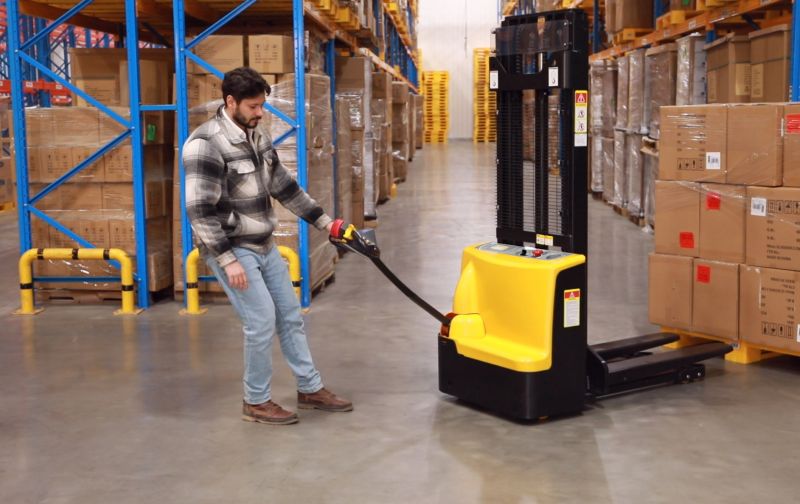

Effortless, easy to operate
Low-mounted longer tiller reduces steering force required.
Easy to recharge

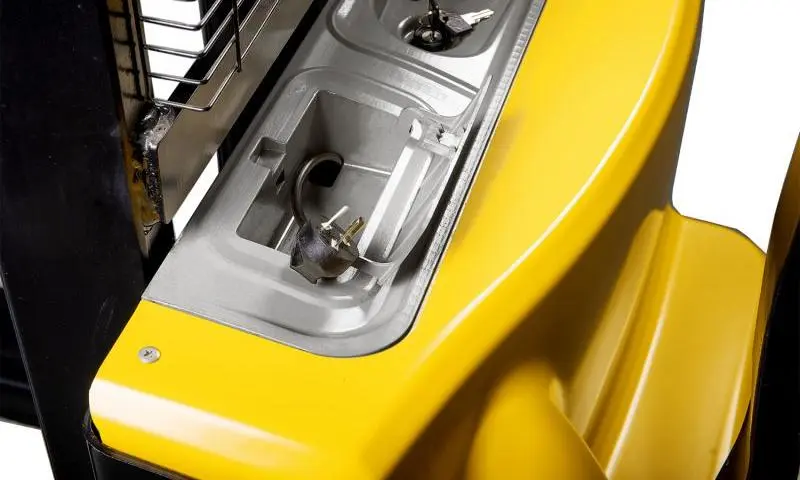

Built-in charger and an external charging cable storage box for convenient charging.
EASY TO RECHARGE
The steering angle is designed to be above 180 degrees
Optional
-
Intelligent controlUnique in the market and very suitable for sorting operations on trucks.With a dedicated remote control device, the operator can control the forks to lift to the appropriate working height and carry out sorting operations, thus avoiding the need to use the handle buttons and bend over to pick up goods, improving operational efficiency and comfort.
-
-

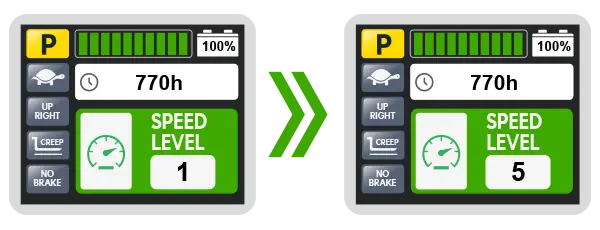

With the remote control device, you can easily set the speed suitable for the work, from level 1 speed to level 5 speed.Such speed transitions allow you to move the truck with controlled operation at ease.
■ Reversing buzzer
■ 24V 60Ah(100Ah) LiFePO4
■ 24V/30A Charger
The Fork Over Stacker is a versatile material handling solution designed to efficiently manage palletized goods in various industrial and commercial environments. Unlike standard pallet jacks, the Fork Over Stacker features forks that extend beyond the length of its chassis, allowing it to lift and transport pallets without the need for straddle legs.
Enhanced Maneuverability: Its design facilitates easy maneuvering in confined spaces and around obstacles, making it ideal for warehouses and production floors with limited space.
Efficient Pallet Handling: With its ability to directly lift and carry pallets, the Fork Over Stacker simplifies loading and unloading operations, optimizing workflow efficiency.
Versatile Applications: It is well-suited for a variety of applications including stacking pallets in storage areas, transporting goods within facilities, and loading/unloading trucks.
Safety and Stability: Built with sturdy construction and equipped with safety features such as braking systems and ergonomic controls, ensuring safe operation and preventing accidents.
Customizable Options: Available in different configurations and with optional features such as adjustable forks, different lift heights, and battery-powered operation to suit specific operational needs.
Overall, the Fork Over Stacker is an indispensable tool for businesses seeking reliable and efficient solutions for pallet handling and logistics operations.
